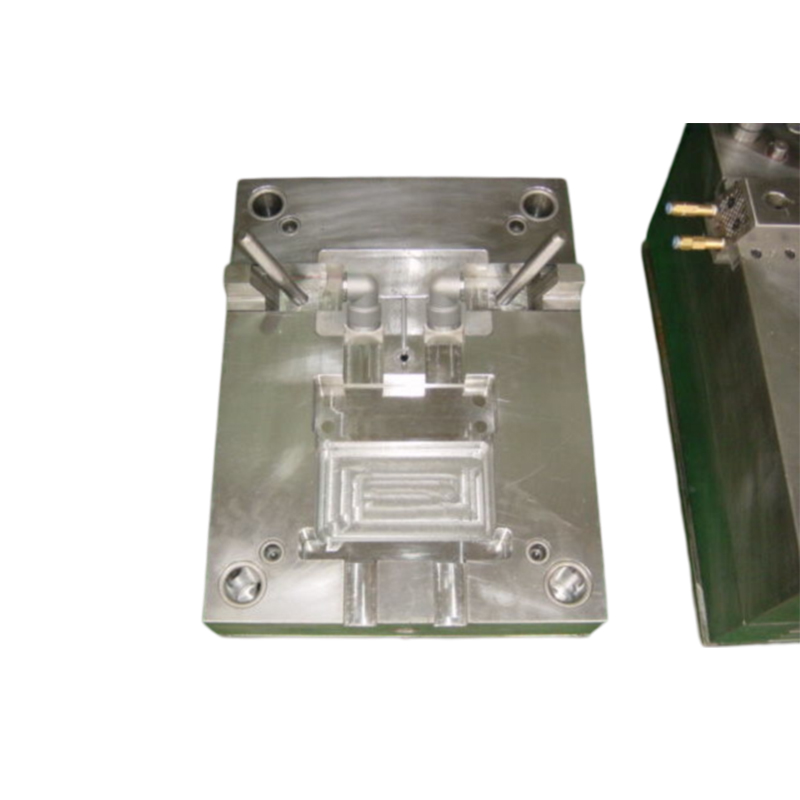

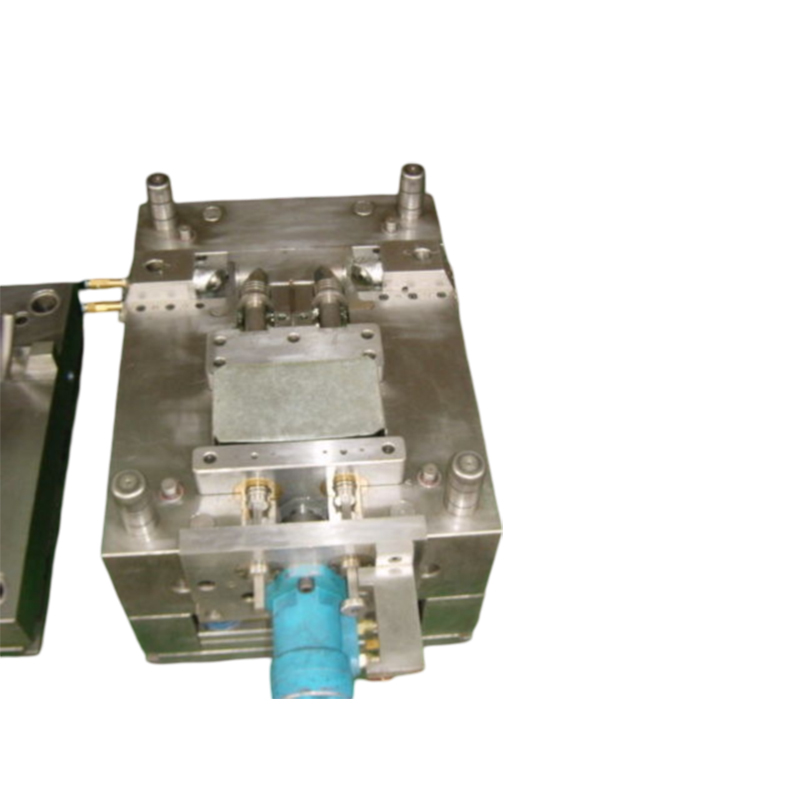

ABS Plastic Injection Mold Design Plastic Molded Products Hot / Cold Runner
ABS Plastic Injection Mold Design Plastic Molded Products Hot / Cold Runner
High Light：injection molding mold design, product mold design
Material：P20, H13, 718, 2738, S136, SKD61
Color;As Per Requirement
Plastic Material:ABS
Cavity:1*1
Dimensions:470*460*430 Mm
Name:Plastic Injection Mold Design
Place of Origin:China
Brand Name:N/A
Certification：ISO9001-2015, CE
Model Number：Plastic Injection Mold-2
Minimum Order Quantity：Molds 1 set, Moulding Parts 3000 pcs
Packaging Details：Plywood Carton, paper carton
Delivery Time：45 working days based on product properties
Payment Terms：T/T
Supply Ability：10 sets molds and 60000 pcs parts per month
Packaging Details
1. For sample: according to the dimension of the plastic parts, we will choose a correect box to avoid the damage during the delivery.
2. For bulk:
1) One piece of plastic product with one plastic bag.
2) Putting these single plastic products into standard export carton.
3) Pallets also can be provided if you need.
Name | Descriptions |
Mould material | 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.(Hardness 35~55HRC) |
Mould base | Standard mold base,LKM, HASCO ect. |
Cavity | Single/multi |
Runner | Hot/cold |
Ejection system | Motor/hydraulic cylinder/stripping plate/angle pin,etc |
Cooling system | In core baffle and in cavity plate chain drilling type cooling |
Design software | UG, PROE, CAD, CAXA ect. |
Plastic material | PP, PC, PS, PE, PU, PVC, ABS, PA66,PMMA, 50% ,35%,15% FIBER ect. |
Surface treatment | Polish,texture,sandblasting,chrome |
Mould life | 300000-500000 shots |
Tolerance | 0.02mm -0.05mm |
Delivery time | Sample making 3-7 days,mold making 15-40 days based on molds structure |
Pacakge | POLYWOOD case |
Specification | Depends on customer's DRAWINGS |
Dimensions | 470*460*430 mm |
| A Grade | B Grade | C Grade | D Grade |
Mold base standard | HASCO/DME | LKM | LKM | Chinese Local |
Cavity steel | H13,2344,2343, | 718,738,P20HH, | Local P20,WY718 | Aluminum,S50C |
8407 Heat Hard steel | NAK80 |
Standard | HASCO,DME | LKM | Chinese Local | / |
Mold life | >500,000-3000,000 | 300,000-500,000 | 100,000-300,000 | >10000 |
Runner | Hot runner,cold runner | Hot runner,cold runner | Cold runner | Cold runner |
Mold price | Most expensive | Expensive | Cost-effective | Cheapest |
